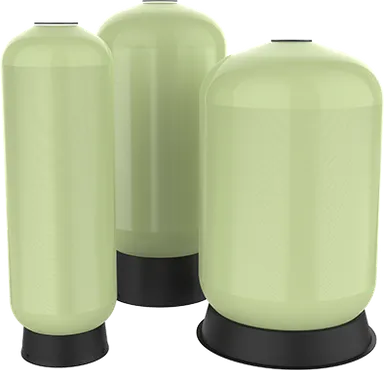

Structural Low Profile Composite Pressure Tank
The Structural Low Profile Composite Pressure Tank is the smart choice when space is a challenge and performance is a priority. A 2" reduction to the flange gives it a lower overall profile than standard composite tanks while holding the same media capacity, so it fits in tighter spaces without a tradeoff. Lightweight fiberglass construction delivers durability in harsh chemical environments. Available in 24x72, 36x72, 42x72, and 48x72 sizes.
Key features
Polyethylene inner shell, fiberglass composite outer shell
2" shorter tank height than standard flange tanks, same storage capacity
No-thread seal design simplifies installation and improves sealing
12-bolt flange pattern for easy plumbing alignment
Large 6" flange opening for quick access to internals
Safety factor of 4:1, minimum burst pressure 600 psi, tested to 250,000 cycles
Max operating pressure 150 psi; max operating temperature 150°F
Tested and certified by WQA to NSF Std. 61 and Std. 372 (low lead)
Natural (NA) color
Available with SMC base or tripod base depending on size
Note: flexible connections required between hard piping and tank openings; a vacuum breaker is required if negative pressure could exceed 5 in. Hg.
| Part no. | Description | Capacity | Tank height | Bottom flange clearance |
|---|---|---|---|---|
| 34816 | 24x72, COMP 6"TLPF 6"BLPF, SMC base | 119 gal | 79.6" | 9.3" |
| 34805 | 24x72, COMP 6"TLPF 6"BLPF, natural, tripod base | 119 gal | 86.4" | 16.1" |
| 34817 | 36x72, COMP 6"TLPF 6"BLPF, SMC base | 264 gal | 80.1" | 9.0" |
| 34806 | 36x72, COMP 6"TLPF 6"BLPF, natural, tripod base | 264 gal | 87.5" | 16.4" |
| 34819 | 42x72, COMP 6"TLPF 6"BLPF, natural, SMC base | 345 gal | 70.5" | 1.6" |
| 34818 | 48x72, COMP 6"TLPF 6"BLPF, SMC base | 463 gal | 78.6" | 6.6" |
| 34807 | 48x72, COMP 6"TLPF 6"BLPF, natural, tripod base | 463 gal | 89.9" | 17.9" |
TLPF/BLPF = top/bottom low profile flange. Capacities match equivalent standard composite tank sizes at the same diameter/height.
