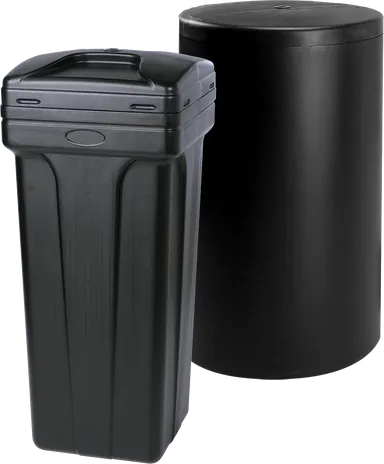

Structural Brine Tanks
Structural blow-molded brine tanks offer attractive styling in a heavy-duty design for residential and commercial softener systems. Molded from rigid, high-impact, non-toxic polyethylene with exceptional resistance to stress cracks, they're built for years of trouble-free service. Available in square and round profiles, with a blow-molded lid only or fully assembled with salt grid, brine well and cap, overflow fitting, and safety brine valve (2310) assembly.
Key features
Rigid, high-impact, non-toxic polyethylene construction
Exceptional resistance to stress cracking
Molded/slotted salt grid designed to reduce salt bridging and promote uniform brining
Pre-drilled and pre-assembled options available
Injection-molded lid; custom logos available
Available in blue, black, almond, natural, white, and platinum (some colors subject to minimum order quantities)
May be shipped with other water treatment components to reduce total shipping cost
Packaged in protective, durable shipping carton
Manufactured in the United States of foreign and domestic parts
| Model | Part no. | Capacity | Salt capacity | Dimensions | Ship weight |
|---|---|---|---|---|---|
| 1833 | CH32837 | 36 gal (136 L) | 325 lbs (148 kg) | 18 x 33" | 13 lbs (5.9 kg) |
| 1835 | CH33200 | 40 gal (151 L) | 350 lbs (159 kg) | 18 x 35" | 13 lbs (5.9 kg) |
| 1840 | CH32838 | 44 gal (167 L) | 425 lbs (193 kg) | 18 x 40" | 14 lbs (6.3 kg) |
| 2440 | CH33053 | 78 gal (295 L) | 750 lbs (340 kg) | 24 x 40" | 26 lbs (11.8 kg) |
| 2454 | CH33250 | 105 gal (397 L) | 1,000 lbs | 24 x 54" | 33 lbs (15 kg) |
| 2454 | CH33054 | 105 gal (397 L) | 1,000 lbs | 24 x 54" | 33 lbs (15 kg) |
2440 and 2454 models available in black only.
| Model | Part no. | Dimensions | Description |
|---|---|---|---|
| 11x34 | CH33982 | 11 x 34" | 1134 brine tank, drilled and cover, 4-pack |
| 14x34 | CH33985 | 18 x 40" | 1840 brine tank, drilled and cover, single |
| 11x34 | CH33092 | 11 x 34" | 1134 brine tank and cover |
| 11x34 | CH33175 | 11 x 34" | 1134 brine assembly, with grid* |
| 11x34 | CH33093 | 11 x 34" | 1134 brine tank assembly, no grid* |
| 14x34 | CH33084 | 14 x 34" | 1434 brine tank and cover |
| 14x34 | CH33088 | 14 x 34" | 1434 brine assembly, no grid* |
| 14x34 | CH33197 | 14 x 34" | 1434 brine assembly, with grid* |
*Includes CH15675 brine tube assembly.
