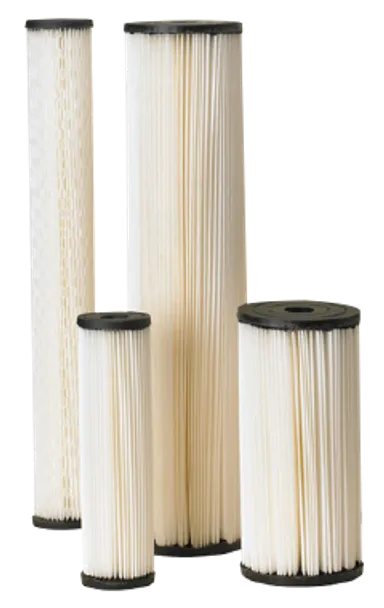

Pentek S1 Series Pleated Cellulose Sediment Filter Cartridges, 20 Micron, Multiple Sizes
| Model | Item # | Dimensions | Micron Rating | Initial ΔP @ Flow Rate | Housing Type |
|---|---|---|---|---|---|
| S1 | 155001-43 | 2.63" x 9.75" | 20 | 2.4 psi @ 10 gpm | Standard 10" |
| S1-20 | 155303-43 | 2.63" x 20" | 20 | 0.8 psi @ 10 gpm | Standard 20" |
| S1-BB | 155405-43 | 4.50" x 9.75" | 20 | 1.2 psi @ 10 gpm | Big Blue 10" (BB/BBFS only) |
| S1-20BB | 155305-43 | 4.50" x 20" | 20 | 1.2 psi @ 10 gpm | Big Blue 20" (BB/BBFS only) |
Media: Resin-impregnated (pleated) cellulose
Standard Endcaps: Vinyl plastisol
Big Blue Endcaps: Polypropylene
Core: Polypropylene
Temp Rating: 40°F–145°F (4.4°C–62.8°C)
Recommended For: Chlorinated municipal water supplies
Note: S1-BB and S1-20BB are for use in Pentek Big Blue Housings and BBFS Systems only
The Pentek S1 Series offers economical, general-purpose sediment filtration built from pleated cellulose media. The media is pleated around a polypropylene core for added strength, with pleated endcaps immersed in thermo-setting vinyl plastisol (standard sizes) or molded polypropylene endcaps with gaskets (Big Blue sizes). A sonically welded overlap seam reduces bypass and improves filtration efficiency throughout the cartridge's service life.
Rated at a nominal 20 microns, S1 Series cartridges are designed for general water filtration purposes and are recommended for use with chlorinated municipal water supplies. Their pleated design maximizes dirt-holding capacity while keeping the cartridges economically priced, making them a practical choice for households and light-duty applications that need reliable, no-frills sediment reduction.
Available in both 10" and 20" lengths, in standard and Big Blue diameters, the S1 Series scales from point-of-use housings to whole house filtration. S1-BB and S1-20BB models are intended specifically for use in Pentek Big Blue housings and BBFS Systems. Select the model below that matches your housing size.
