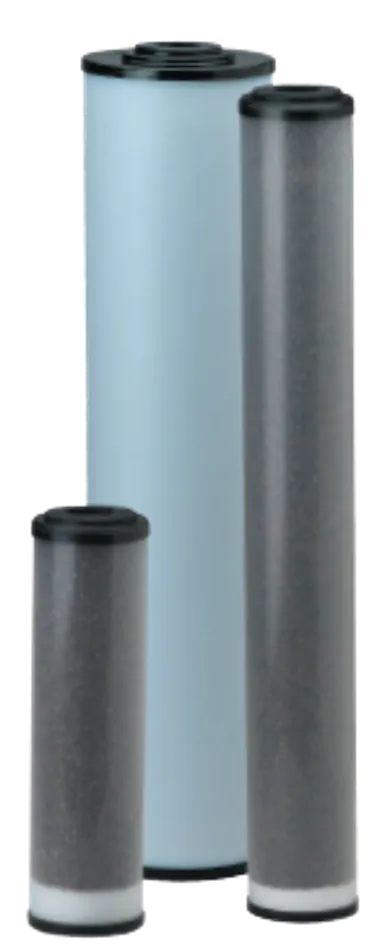

Pentek Pcf Series Mixed Bed Deionization Filter Cartridges, Multiple Sizes
| Model | Item # | Dimensions | Capacity (Grains / mg TDS as CaCO3) | Pressure Drop @ Flow | Suggested Flow Rate |
|---|---|---|---|---|---|
| PCF1-10MB | 155273-43 | 2.67" x 9.75" | 270 (17,500) | 1.5 psi @ 0.25 gpm | 0.25 gpm |
| PCF1-20MB | 155274-43 | 2.67" x 20" | 600 (38,800) | 3.4 psi @ 0.50 gpm | 0.50 gpm |
| BBF1-20MB | 155281-43 | 4.50" x 20" (Big Blue) | 1,850 (120,000) | 1.1 psi @ 1.25 gpm | 1.25 gpm |
Media: Mixed bed DI resins (Cation R-SO3-H+, Anion R-N(CH2)2(C2H2OH)+OH-)
Physical Form: Moist spherical bead
Percent Conversion: Hydrogen 99% min, Hydroxide 95% min
Endcaps/Shell/Pre-Filter/Post-Filter: Polypropylene
Gaskets: Buna-N
Temp Rating: 40°F–100°F (4.4°C–37.8°C)
Applications: Circuit board printing, pharmaceutical use, cosmetics, steam/humidification systems, recirculating/cooling towers, power generation, medical/laboratory use, lasers, jet water sprayers, boiler make-up water
Caution: Do not use on equipment with an electric conductivity water level indicator
The Pentek PCF Series was developed to meet the demanding requirements for deionized water across a wide range of industries. Each cartridge is manufactured using mixed bed resin that has undergone additional post-production steps to minimize total organic carbon (TOC) levels, delivering high-purity deionized water capable of reaching up to 16 megohms.
These high-capacity, semi-conductor-grade resin cartridges are ideal for pharmaceutical and medical laboratories, cosmetics manufacturing, circuit board printing, and other applications where low levels of TOC and total dissolved solids (TDS) are essential. They're also well suited for steam processing, humidification systems, recirculating and cooling towers, power generating equipment, lasers, jet water sprayers, and boiler make-up water.
Available in three sizes with capacities ranging from 270 to 1,850 grains, the PCF Series offers a convenient, cost-effective deionization solution scaled to your flow rate and volume needs. Select the model below that matches your application requirements.
