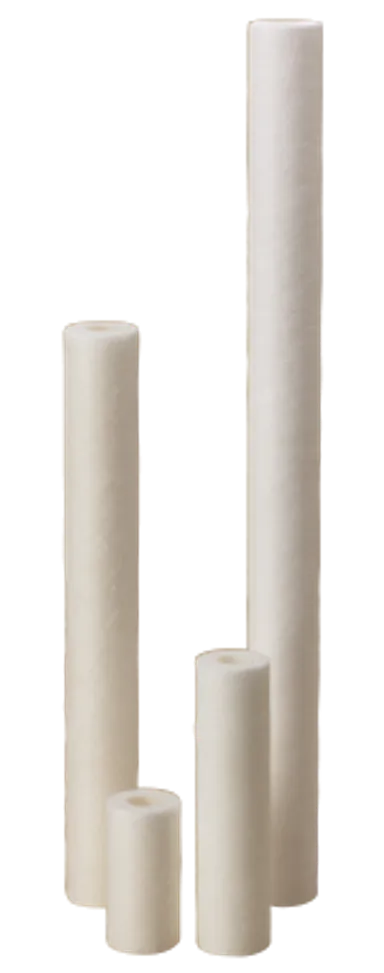

Pentek P Series Spun-Bonded Polypropylene Sediment Filter Cartridges, 1/5/25 Micron, Multiple Sizes
| Model | Item # | Dimensions | Micron Rating | Initial ΔP @ Flow Rate | NSF/ANSI 42 Certified |
|---|---|---|---|---|---|
| P5-478 | 155030-43 | 2.38" x 4.88" | 5 | 0.3 psi @ 2 gpm | No |
| P1 | 155225-43 | 2.38" x 9.88" | 1 | 0.6 psi @ 5 gpm | Yes |
| P5 | 155014-43 | 2.38" x 9.88" | 5 | 0.2 psi @ 5 gpm | Yes |
| P25 | 155015-43 | 2.38" x 9.88" | 25 | 0.2 psi @ 5 gpm | No |
| P1-20 | 155304-43 | 2.38" x 20" | 1 | 0.6 psi @ 10 gpm | Yes |
| P5-20 | 155016-43 | 2.38" x 20" | 5 | 0.6 psi @ 10 gpm | Yes |
| P25-20 | 155226-43 | 2.38" x 20" | 25 | 0.2 psi @ 10 gpm | No |
| P1-30 | 155227-43 | 2.38" x 30" | 1 | 0.5 psi @ 10 gpm | No |
| P5-30 | 155228-43 | 2.38" x 30" | 5 | 0.2 psi @ 10 gpm | No |
| P25-30 | 155224-43 | 2.38" x 30" | 25 | 0.2 psi @ 10 gpm | No |
| P5-40 | 155422-43 | 2.38" x 40" | 5 | 0.2 psi @ 10 gpm | No |
Media: 100% spun-bonded polypropylene fibers (true gradient density)
Temp Rating: 40°F–145°F (4.4°C–62.8°C)
Micron Ratings Available: 1, 5, 25 (nominal)
Lengths Available: 4.88", 9.88" (10"), 20", 30", 40"
Certification: NSF/ANSI Standard 42 (P1, P5, P1-20, P5-20 only — other variants not NSF tested/certified)
Construction: Coreless, sintered fiber matrix — no separate support core
The Pentek P Series is a full line of spun-bonded polypropylene sediment filter cartridges, manufactured from 100% pure polypropylene fibers that are carefully spun together to form a true gradient density from outer to inner surfaces. This construction delivers dependable particulate reduction while remaining highly resistant to chemicals and bacterial attack.
Designed for purity, P Series cartridges won't impart taste, odor, or color to filtered water when used within their recommended temperature range. Their coreless strength comes from sintering the polypropylene fibers into a solid matrix — no separate support core needed — while maintaining structural integrity under flow.
Available in nominal 1, 5, and 25 micron ratings and lengths from 4.88" up to a full 40", the P Series covers everything from compact point-of-use housings to high-capacity whole house and industrial applications. The P1, P5, P1-20, and P5-20 models are tested and certified by NSF International to NSF/ANSI Standard 42 for material requirements. Select the model below that matches your housing size and desired micron rating.
