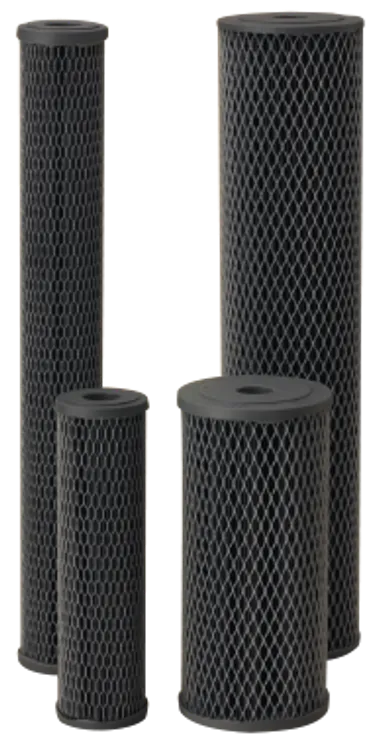

Pentek Ncp Series Non-Cellulose Carbon-Impregnated Pleated Filter Cartridges, 10 Micron, Multiple Sizes
| Model | Item # | Dimensions | Micron Rating | Chlorine Capacity @ Flow | Pressure Drop @ Flow |
|---|---|---|---|---|---|
| NCP-10 | 155367-43 | 2.5" x 9.75" | 10 | 225 gal @ 1 gpm (50% FAC reduction) | 2 psi @ 3 gpm |
| NCP-BB | 155398-43 | 4.5" x 9.75" (Big Blue) | 10 | 500 gal @ 2 gpm | 2 psi @ 8 gpm |
| NCP-20 | 155397-43 | 2.5" x 20" | 10 | ~450 gal @ 2 gpm (est.) | 1 psi @ 10 gpm |
| NCP-20BB | 155382-43 | 4.5" x 20" (Big Blue) | 10 | 1,000 gal @ 4 gpm | 1 psi @ 10 gpm |
Media: Pleated carbon-impregnated polyester (non-cellulose)
Standard Endcaps: Vinyl plastisol
Big Blue Endcaps: Polypropylene
Core: Polypropylene
Temp Rating: 40°F–125°F (4.4°C–51.7°C)
Certification: NSF approved for material and structural integrity
Water Type: Municipal (chlorinated) or well (non-chlorinated) — unlike cellulose cartridges
Application: Whole house, polishing filter, closed-loop streams, post-RO, well water
The Pentek NCP Series is constructed from a carbon-impregnated non-cellulose media, delivering sediment filtration alongside taste, odor, and chlorine taste and odor reduction in a single cartridge. Unlike traditional cellulose cartridges, NCP Series media is resistant to bacterial attack, making it suitable for both municipal (chlorinated) and non-chlorinated well water applications.
Each cartridge's pleated design provides significantly more surface area than standard wound cartridges, delivering high dirt-loading capacity while maintaining minimal pressure drop. This combination of pleated polyester media and carbon filtration produces an outstanding cartridge with extended service life compared to conventional carbon or sediment-only filters.
Available in standard and Big Blue formats from 10" to 20" in length, the NCP Series makes an excellent polishing filter for closed-loop streams and is especially well suited for post-reverse-osmosis and well water applications. Select the model below that matches your housing size.
