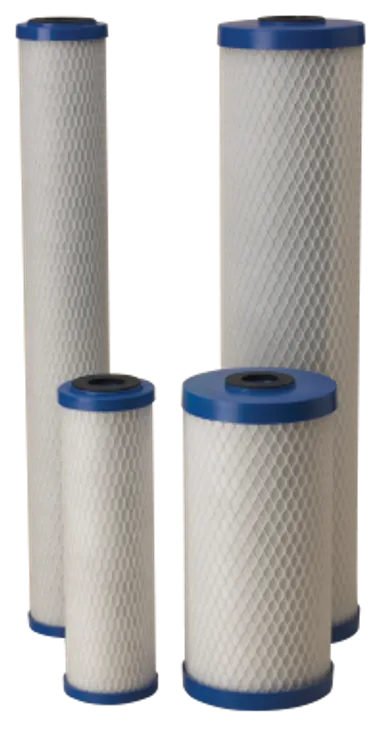

Pentek Ep Series Carbon Block Filter Cartridges, 5 Micron, Multiple Sizes
| Model | Item # | Dimensions | Micron Rating | Pressure Drop @ Flow | Chlorine Capacity @ Flow | NSF/ANSI 42 Certified |
|---|---|---|---|---|---|---|
| EP-10 | 155531-43 | 2.89" x 9.75" | 5 | 1.7 psi @ 1.0 gpm | >6,000 gal @ 1.0 gpm | Yes |
| EP-20 | 155529-43 | 2.89" x 20" | 5 | 1.7 psi @ 2.0 gpm | >12,000 gal @ 2.0 gpm | Yes |
| EP-30 | 155698-43 | 2.89" x 30" | 5 | 2.4 psi @ 3.0 gpm | >18,000 gal @ 3.0 gpm | No |
| EP-BB | 155548-43 | 4.63" x 9.75" (Big Blue) | 5 | 2.0 psi @ 2.0 gpm | >22,000 gal @ 2.0 gpm | Yes |
| EP-20BB | 155583-43 | 4.63" x 20" (Big Blue) | 5 | 2.0 psi @ 4.0 gpm | >44,000 gal @ 4.0 gpm | Yes |
Media: Bonded PAC (powdered activated carbon)
Endcaps: Polypropylene
Outer Wrap: Polyolefin
Netting: Polyethylene
Gaskets: TPE/Santoprene
Temp Rating: 40°F–180°F (4.4°C–82.2°C)
Certification: NSF/ANSI Standard 42 (EP-10, EP-20, EP-BB, EP-20BB only — EP-30 not NSF certified)
Pre-filter: Polyolefin bilaminate (extends cartridge life by trapping sediment)
The Pentek EP Series is a line of bonded PAC (powdered activated carbon) block filter cartridges engineered for a nominal 5-micron filtration rating with high dirt-holding capacity. A high-porosity design helps prevent the cartridge from plugging before its adsorption capacity is exhausted, maximizing carbon utilization while maintaining low pressure drop — delivering highly effective bad taste and odor, and chlorine taste and odor reduction throughout the cartridge's service life.
Each EP Series cartridge is protected by a uniquely formulated polyolefin bilaminate pre-filter layer that traps sediment before it can plug the carbon block, significantly extending useful cartridge life compared to unprotected carbon block designs. This makes the EP Series a reliable choice across residential, food service, commercial, and industrial applications.
Available in standard and Big Blue formats from 9.75" up to 30" in length, the EP Series scales from point-of-use under-sink systems to full whole house filtration. The EP-10, EP-20, EP-BB, and EP-20BB are tested and certified by NSF International to NSF/ANSI Standard 42 for material requirements. Select the model below that matches your housing size.
