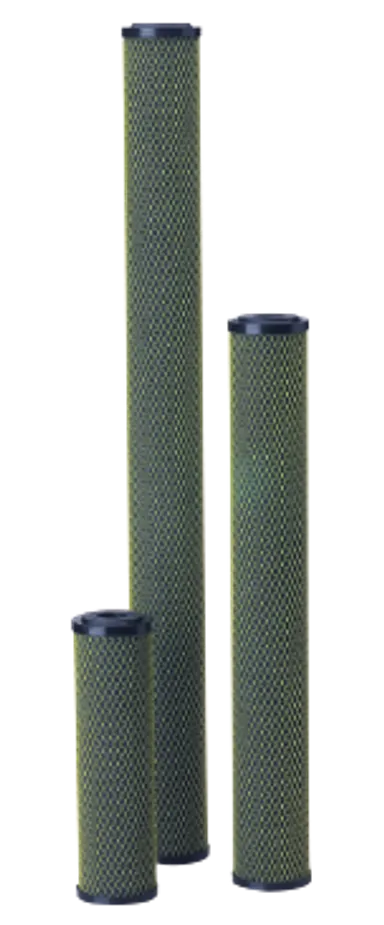

Pentek Elpc Series Activated Carbon Filter Cartridge - Electroplating Solutions | Pentair

The Pentek ELPC Series is a premium line of activated carbon filter cartridges purpose-built for electroplating solutions. Engineered with proprietary Fibredyne technology, the ELPC delivers true depth filtration in a unique fibrous block structure - enabling maximum treatment capacity with minimal pressure drop through the cartridge.

Unlike standard carbon cartridges, the ELPC Series uses an ultra-clean, highly purified carbon specifically selected to prevent sulfur leaching into the plating bath, protecting plating solution integrity. An integrated post-filtration layer ensures no carbon fines bleed into the bath during operation - a critical requirement for electroplating processes where contamination can compromise results.

Built with cellulose-free construction, the ELPC Series resists chemical breakdown in both acidic and alkaline solutions up to 180°F (82°C), making it suitable for the demanding chemistries found in industrial plating environments. Endcap gaskets are permanently molded onto the cartridge, simplifying change-out and eliminating the risk of gaskets falling into the housing during installation.

Key Features:
- Premium activated carbon cartridge purpose-built for electroplating solutions
- Ultra-clean, highly purified carbon prevents sulfur leaching into plating baths
- Integrated post-filtration layer prevents carbon fines from bleeding into the bath
- Cellulose-free construction resists chemical breakdown in acidic and alkaline solutions
- Rated for use up to 180°F (82°C)
- Fibredyne technology provides true depth filtration with minimal pressure drop
- 10-micron nominal rating with superior dirt-holding capacity
- Permanently molded endcap gaskets ease cartridge change-out

Specifications:
Brand: Pentair
Product Line: Pentek ELPC Series
Application: Electroplating solution filtration (industrial)
Filter Media: Ultra-clean, highly purified activated carbon (Fibredyne construction)
Filtration Rating: 10 micron (nominal)
Construction: Cellulose-free
Maximum Operating Temperature: 180°F (82°C)
Chemical Compatibility: Resistant to breakdown in both acidic and alkaline solutions
Endcap Design: Permanently molded gaskets
Typical Applications: Electroplating baths and industrial plating solution filtration
