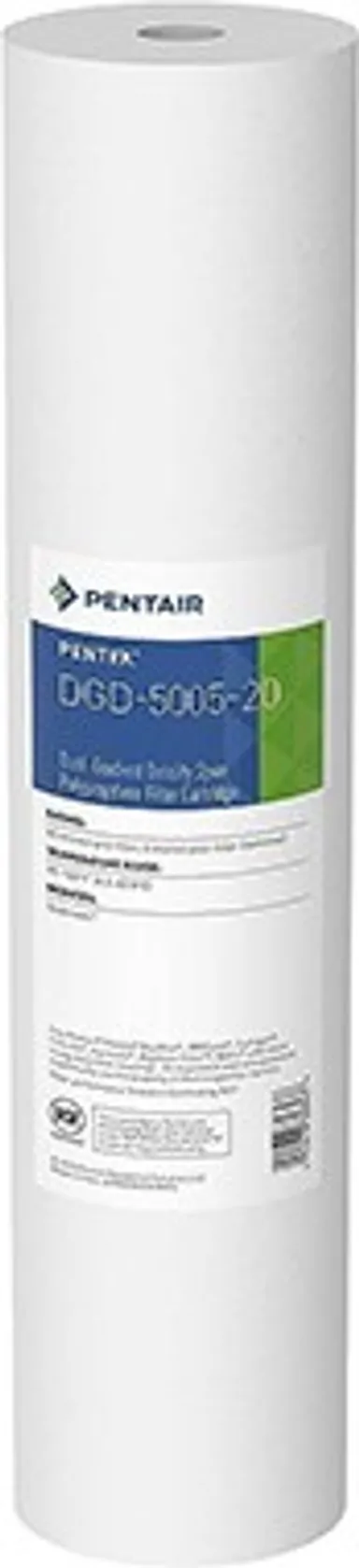

Pentek Dgd-5005-20 Dual-Gradient Density Sediment Filter Cartridge, 50/5 Micron, 20" X 4.5" (item #155358-43)

Key Specs:

Item #: 155358-43 (DGD-5005-20)
Dimensions: 20" x 4.5" (Big Blue)
Filtration: 50-micron pre-filter / 5-micron post-filter (dual-gradient)
Material: 100% spun polypropylene
Flow Rate: <1 PSI drop @ 20 GPM
Temp Rating: 40°F–145°F (4.4°C–62.8°C)
Certification: NSF/ANSI Standard 42
Compatible Housings: Pentek Big Blue, 3M/Cuno, Culligan, Filterite, Harmsco, Keystone Filter, Watts

Reduce heavy sediment loads with a single cartridge using the Pentek DGD-5005-20 dual-gradient density filter (Item #155358-43). Built for standard 20" Big Blue filter housings, this cartridge combines two filtration stages in one: a 50-micron nominal outer wrap for pre-filtration and a 5-micron nominal inner core for fine final filtration — eliminating the need for a separate step-down filtration system in your home.

Made from 100% pure polypropylene, the DGD-5005-20 delivers up to three times the dirt-holding capacity of standard spun or string-wound cartridges of the same size, making it ideal for surface water, well water, and other high-sediment-load applications. The polypropylene construction is highly resistant to chemicals and bacteria, and won't impart any taste, color, or odor to filtered water.

The dual-gradient design lets water pass through progressively finer layers, capturing sand, silt, rust, and scale particles while maintaining strong flow rates and long filter life — with an initial pressure drop of less than 1 PSI at 20 GPM. It's a direct-fit replacement for Pentek, 3M/Cuno, Culligan, Filterite, Harmsco, Keystone Filter, Watts, and most other heavy duty Big Blue housings, and is well-suited for residential, rural, commercial, or municipal water systems.
