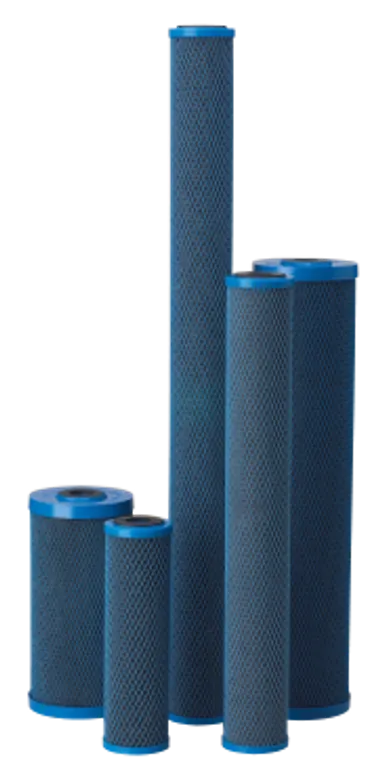

Pentek Cfb-Plus Series Fibredyne Modified Molded Carbon Block Filter Cartridges, Multiple Sizes
| Model | Item # | Dimensions | Rating (Nominal) | Pressure Drop @ Flow | Chlorine Capacity @ Flow |
|---|---|---|---|---|---|
| CFB-Plus 10 | 255674-43 | 2.88" x 9.75" | 5-10 micron | 1.6 psi @ 1 gpm | >10,000 gal @ 1 gpm |
| CFB-Plus 20 | 255675-43 | 2.88" x 20" | 5-10 micron | 1.6 psi @ 2 gpm | >20,000 gal @ 2 gpm |
| CFB-Plus 30 | 255676-43 | 2.88" x 30" | 5-10 micron | 1.6 psi @ 3 gpm | >30,000 gal @ 3 gpm |
| CFB-Plus 10BB | 255677-43 | 4.63" x 9.75" (Big Blue) | 5-10 micron | 2.5 psi @ 2 gpm | >25,000 gal @ 2 gpm |
| CFB-Plus 20BB | 255678-43 | 4.63" x 20" (Big Blue) | 5-10 micron | 2.5 psi @ 4 gpm | >50,000 gal @ 4 gpm |
Media: Bonded PAC (Fibredyne technology)
Endcaps: Polypropylene
Netting: Polyethylene
Gaskets: Santoprene
Temp Rating: 40°F–180°F (4.4°C–82.2°C)
Certification: NSF/ANSI Standard 42 (material requirements only)
Replacement Interval: Every 12 months, or when a noticeable drop in flow rate occurs
Note: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system
The Pentek CFB-Plus Series is an enhanced version of Pentair's standard CFB cartridges, offering even greater chlorine taste and odor reduction along with the highest sediment reduction found in a carbon cartridge. These modified molded blocks are built using Pentek's proprietary Fibredyne technology, which attaches powdered activated carbon onto a cellulose-free synthetic fiber matrix — combining the benefits of a sediment filter and a carbon block in a single cartridge.
Fibredyne's carbon block technology delivers up to two times the chlorine taste and odor reduction and dirt-holding capacity of traditional carbon blocks, while a unique post-filtration layer fused to the carbon/fiber media blend prevents carbon fines from releasing into the effluent stream. This makes the CFB-Plus Series an ideal choice for a wide range of residential, food service, commercial, and industrial applications requiring premium taste, odor, and sediment reduction.
Available from a compact 9.75" cartridge up to a full 20" Big Blue format, the CFB-Plus Series scales from point-of-use under-sink systems to whole house filtration. All CFB-Plus models are tested and certified by NSF International to NSF/ANSI Standard 42 for material requirements. Select the model below that matches your housing size.
