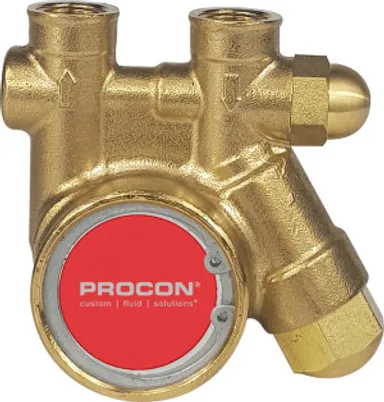

Rotary Vane Pump Series 1- 101a015f12ba
- Consistent flow rate across variable pressures
- Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
- Internal Relief Valve Standard-Non External adjust configuration
- Integral Strainer for debris removal from pumping fluid
- Brass Housing Material
- NPT 3/8" Inlet and Outlet Connections
- Constructed with EPDM/Nitrile Elastomers
- Flowrate of 15GPH (45LPH)*
- Fluid Operating Temperature of between -4°F to 194°F (-20°C to 90°C)
- Maximum Mechanical Horsepower required 0.19hp (142W)¹
* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
¹ Mechanical Horsepower requirement based on pump tested with water at room temperature and maximum operating pressure 250psi (17.5BAR)
