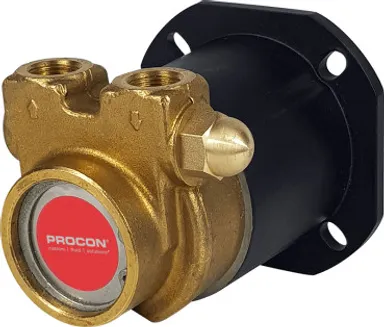

Mag Drive Rotary Vane Pump Mag 2- 312b080f11bc2x
- Consistent flow rate across variable pressures
- Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
- Internal Relief Valve Standard-Non External adjust configuration
- Brass Housing Material
- NPT 3/8" Inlet and Outlet Connections
- Constructed with EPDM Elastomers
- Flowrate of 80GPH (240LPH)*
- Fluid Operating Temperature of between -4°F to 160°F (-20°C to 71°C)
- Maximum Mechanical Horsepower required 0.39hp (291W)¹
* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
¹ Mechanical Horsepower requirement based on pump tested with water at room temperature and maximum operating pressure 250psi (17.5BAR)
