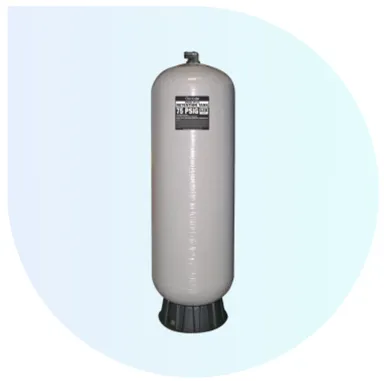

Clack Retention Tank – 40, 80 & 120 Gallon (RT40, RT80, RT120, MCT120)
Clack Retention Tanks provide the contact time needed for effective chlorination, oxidation, and aeration in well water and point-of-entry treatment systems. Each tank is built with a seamless, one-piece high-density polyethylene (HDPE) liner wrapped in composite fiberglass filament winding, with a glass-filled polypropylene inlet for added strength and pressure capability. Made in the USA and certified to NSF/ANSI/CAN 61 and 372.
Key features
- Convenient inlet/outlet piping connection at the top of the tank
- Inlet/outlet adapter easily accommodates a vacuum breaker
- Buttress-thread inlet/outlet for strength
- Full 3/4" blow-down drain at the lowest point of the tank
- 360° drain orientation for flexible installation
- Black one-piece polyethylene liner for impact and corrosion resistance
- Optional bypass valve available
- Made in the USA
Specifications
| Capacities | 40 – 120 gallons |
| Max operating pressure | 75 psi (517 kPa) |
| Max operating temperature | 120°F (49°C) |
| Max allowable operating vacuum | 0 (use of a vacuum breaker is recommended) |
| Fittings included | 1-1/4" x 1-1/2" PVC straight solvent fitting kit; 1-1/4" plastic straight male NPT fittings |
| Optional | Bypass valve |
| Warranty | 5-year limited |
Available models
| Model | Diameter (in/mm) | Height (in/mm) | Capacity (gal/L) | Shipping weight (lb/kg) |
|---|---|---|---|---|
| RT40 Retention Tank | 34.9 / 886 | 40.5 / 1,029 | 40 / 151 | 37 / 17 |
| RT80 Retention Tank | 21 / 533 | 67.5 / 1,715 | 80 / 303 | 66 / 30 |
| RT120 Retention Tank | 24 / 607 | 78.5 / 1,994 | 120 / 454 | 80 / 36 |
| MCT120 Maximum Contact Tank | 24 / 607 | 78.5 / 1,994 | 120 / 454 | 80 / 36 |
Certifications
- NSF/ANSI/CAN 61
- NSF/ANSI/CAN 372
Ideal for
Chlorine and hydrogen peroxide contact time, iron and hydrogen sulfide oxidation, aeration systems, and well water treatment where extended retention time improves results.
