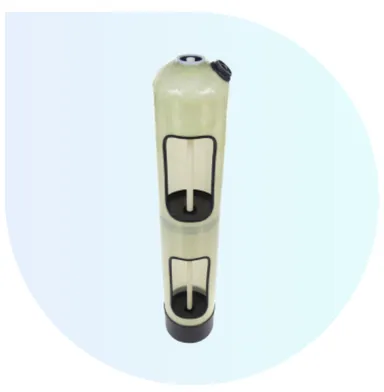

Clack Plated Mineral Tank – Gravel-Free Distributor Plates, NSF Certified
Clack Plated Mineral Tanks replace the conventional bottom distributor and gravel underbedding with full-diameter distributor plates for more uniform flow, lower pressure drop, and better use of the entire media bed. Built from a high-density polyethylene (HDPE) liner with composite fiberglass filament winding and a glass-filled polypropylene inlet, they deliver the strength and pressure capability needed for standard resin softeners and media filter systems. Made in the USA and backed by a 10-year warranty.
Key features
- Bottom and laser-welded mid distributor plates span the full tank diameter, maximizing distribution through the entire media bed
- Eliminates the need for a gravel support bed
- Uniform 0.010" – 0.013" slot size for reduced pressure drop
- Uniform flow in both downflow and upflow directions; suitable for downflow and upflow brining
- Brine pick-up directly from the bottom of the tank
- Distributor riser tube with lock feature threads securely into the bottom plate, with no solvent and no special tools required
- Encapsulated distributor plates made from glass-reinforced plastic
- Every liner is air tested before winding
- Patented design (U.S. Patent 10,472,251)
- Made in the USA
Specifications
| Application | Standard resin softener systems and media filter systems |
| Tank construction | HDPE liner with composite fiberglass filament winding |
| Inlet | Glass-filled polypropylene |
| Distributor plates | Glass-reinforced plastic |
| Slot size | 0.010" – 0.013" |
| Warranty | 10 years |
Certifications
- NSF/ANSI 44
- NSF/ANSI/CAN 61
- NSF/ANSI/CAN 372
Important note
The distributor riser tube can be removed, but it should not be reused once removed, because the lock mechanism is compromised. Always install a new riser tube.
Ideal for
Residential and light commercial water softeners, carbon filters, and specialty media systems where gravel-free installation, even flow distribution, and full use of the media bed improve performance and simplify service.
