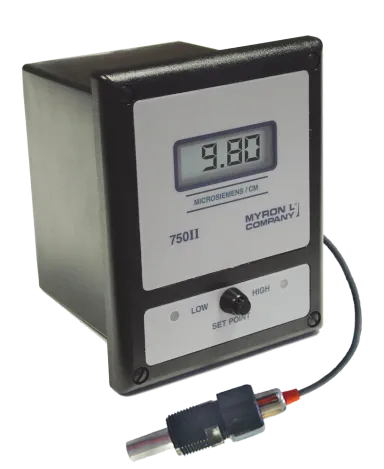

750 Series Ii Conductivity / TDS Monitor / Controllers
The Myron L 750 Series Ii Conductivity / TDS Monitor / Controllers is used in Water Quality Testers & Monitors applications and supplied wholesale by All For Water.
- Temperature Compensation: Integral thermistors provide automatic TC to 25ºC between 0-100ºC/32-212ºF.
- Pressure /Temperature Limits: CS51: 100 psi / 690 kPa @ 100°C/212°F. 250 psig @ 205°C, Models CS40 and CS41 sensors available on special order.
- Bushing: Modular Polypropylene threaded 3/4" NPT. 1/2" PVDF or 316 stainless steel fittings available as option.
- Cable: Shielded 10 ft./3 meters standard 25 and 100 ft./ 8 and 30 meter lengths available. 100 ft./30 meter is maximum recommended.
- Dimensions: CS51: Metal portion 30 L x 13 Dia. mm/ 1.2 L x .5 Dia. in.
- CS51LC sensors (0.1 constant) are used for 5 and below.
- CS51 sensors (1.0 constant) are used between 0-10 and 0-20,000.
- CS52 sensors (10.0 constant) are used above 20,000.
- Low cost, low temperature, low pressure sensors available upon request. See 750II Sensor Selection Guide.
| Ranges | 34 ranges from 0-1 ppm/μS (μM) to 0-200 ppt/mS (mM) |
| See Price List for further details. | |
| Display | Analog Models: 2.5 in./63 mm meter |
| Digital Models: .5 in./13 mm 3½ Digit LCD | |
| Digital Option: 3½ or 4½ Digit Backlit | |
| Accuracy | Analog Models: ± 2% of full scale |
| Digital Models: ± 1% of full scale | |
| Sensitivity | 0.05% of full scale |
| Stability | 0.05% of full scale |
| Repeatability | 0.1% of full scale |
| Calibration Check | Built-in |
| Recorder Output | 0-10 VDC @ 5 mA max. (linear); standard all models |
| Sensor Inputs | 1 (3 input option available) |
| Control Function | Single Alarm/controller fully adjustable 0-100% of full scale |
| Hysteresis: Adjustable from 0.3-3% of full scale | |
| Indicators: Above (red) and below (green) setpoint LEDs (reversible) | |
| Contact Rating: SPDT 10 amp @ 250 VAC, 30 VDC. Relay operates decreasing or increasing reading (selectable). | |
| Second Alarm/controller, with above specifications – optional | |
| Solid State Output | Powered; 24 VDC unregulated 30 mA max. |
| Power | 115/230 VAC, 50/60 Hz, ±15% (user selectable) |
| 24 VAC optional | |
| Maximum Power Consumption | @ 115V: 100 milliamps |
| Dimensions | 152 H x 122 W x 96 D mm / 6 H x 4.8 W x 3.8 D in. |
| Construction | Fully gasketed heavy-duty ABS case; water resistant and corrosion proof IP65/NEMA 4X rated |
| Ambient Temp Range | 0-60°C / 32-140°F |
| Weight | 0,9 kg/2 lbs. |
